Archival product

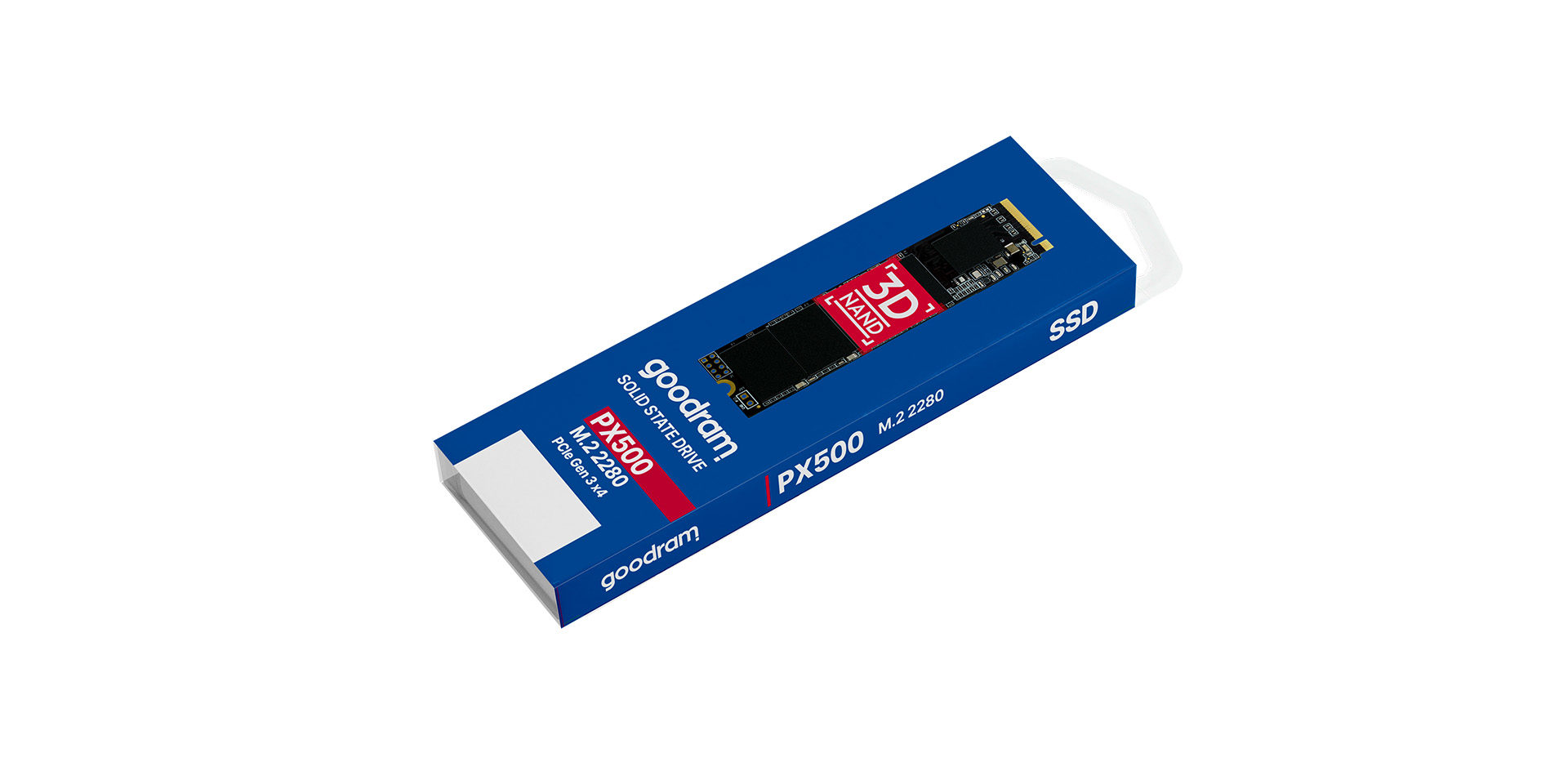

GOODRAM PX500 M.2 SSD

By providing up to 4x better sequential and random transfer performance compared to SATA III Solid State Drives and lower latency than AHCI drives, GOODRAM PX500 pumps-up your PC. The performance will improve the work of more demanding customers, offering a reading of up to 2050MB/s. It is also perfect as a stand-alone drive, as well as an add-on to a hard disk in desktops and laptops. Available capacities for the PX500 make the drive work in both roles.

Key features
  • Available capacities:
    256 GB 512 GB 1024 GB
  • M.2 2280 form factor
  • PCIe GEN 3 x4 NVMe interface
  • 3D NAND flash technology
  • 3-year warranty limited by the TBW* parameter and free technical support

High performance

By creating a disk based on efficient memory in 3D TLC technology and the SMI 2263XT controller, we  managed to achieve  sequential transfer parameters of  up  to 2050 MB/s for reading and 1650 MB/s for write and 173 000 read operations and 143 000 write operations per second (IOPS).

New possibilities with NVMe

NVM Express communication protocol was designed from the ground up to achieve the potential of fast flash based storage media. By utilizing it in PX500 SSD, we were able to extract the maximum performance from its memory, controller and PCIe Gen 3 x4 interface. NVMe drastically reduces latency and queuing to bring much better responsiveness vs. AHCI-based SSD.

Heat under control

One of the problems that concerns M.2 SSD format is the thermal throttling – limitation of efficiency due to too high ambient temperature. To get it under control, PX500 have special coating  consisting of copper and graphite. Thanks to this, we have obtained very good heat dissipation, without increasing the size of the disk.

3-year warranty & endurance

GOODRAM PX500 is available in 256, 512 GB and 1 TB capacities. All sizes are available in M.2 2280 format, with one-sided placement of elements. As the rest of Goodram SSD’s, PX500 comes up with a 3-year warranty.



* TBW (Total Bytes Written) – SSD durability, a parameter that determines the maximum amount of data that can be saved on a drive until the warranty expires. The TBW parameter is defined in the SSD product specifications.

Capacities

256GB, 512 GB, 1TB

Interface

M.2 PCIe NVMe gen 3 x4 (M key)

Form factor

M.2 size 2280

Memory chips

3D NAND flash

Controller

SMI 2263XT

IOPS

up to 173 000 for read operations
up to 143 000 for write operations

MTBF

2 000 000 hours

Operating temperature

0 - 70°C

Storage temperature

-45 - 85°C

Dimensions

80 x 22 x 3,5 mm

Performance

1Based on tests performed in Crystal Disk Mark 5.2.1 on SSD in FOB (fresh-out-of-box) state. Actual results may vary depending on your system configuration or SSD wear.
2The warranty period ends on the date when the SSD has exceeded its TBW.
256GB512GB1TB
Sequential read performance (max.)11 850 MB/s2 000 MB/s2 050 MB/s
Sequential write performance (max.)1950 MB/s1 600 MB/s1 650 MB/s
Random read performance (4K QD32) (max.)1148 000 IOPS173 000 IOPS171 000 IOPS
Random write performance (4K QD32) (max.)1135 000 IOPS140 000 IOPS143 000 IOPS
TBW (TB)2170330660

Logistics data

ProductCapacityContainsP/NEAN
SSD PX500 256GB256 GBBlister packaging; includes: SSDSSDPR-PX500-256-805908267923252
SSD PX500 512GB512 GBBlister packaging; includes: SSDSSDPR-PX500-512-805908267923269
SSD PX500 1TB1 TBBlister packaging; includes: SSDSSDPR-PX500-01T-805908267923276

Capacities

The capacity for GOODRAM SSD is given in accordance with the IDEMA standard (LBA1-03). After formatting the drive, the capacity shown by the operating system may be lower than the advertised capacity.
Capacity in the specificationThe capacity visible in the operating system
256 GB238,47 GB
512 GB476,94 GB
1 TB 953,87 GB

GOODRAM reserves the right to change the specification at any time without prior information.

Form factor Size File
Firmware ZIP 1 MB
Software ZIP 42 MB
Product brochure PDF MB
Manual PDF MB
Photos ZIP 1 MB
