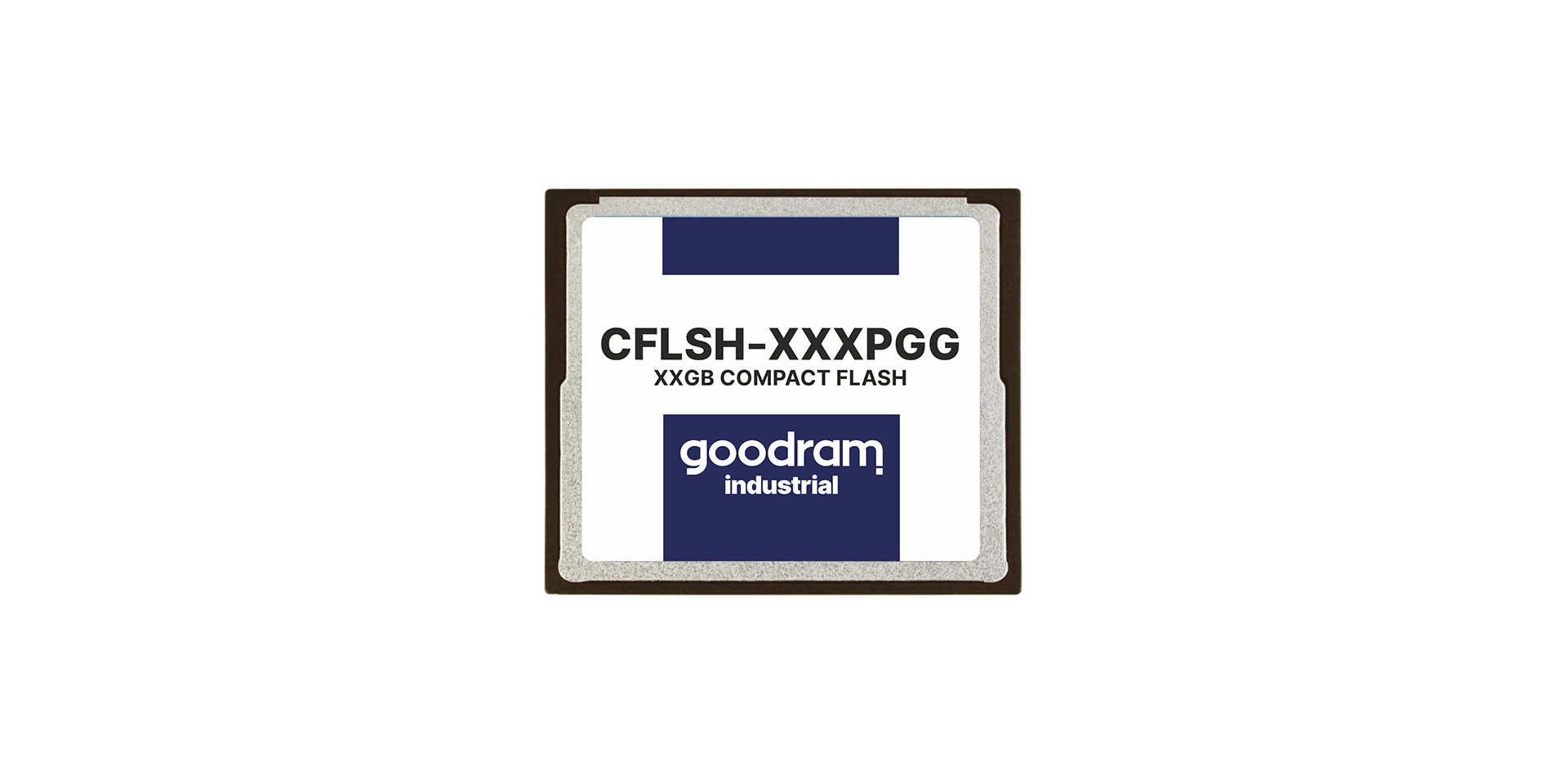

MLC / pSLC / SLC Compact Flash

Compact Flash memory card has a PATA interface and the form factor that complies with PCMCIA I and II standards. Since it is compatible with the IDE interface, it can be used as a system drive in all applications requiring low power consumption, low heat emission and resistance to mechanical vibration. Performance can be expressed in MB/s or in compliance with UDMA standard.

Key features
  • Available capacities:
    MLC: 4 - 128 GB pSLC: 4 - 64 GB SLC: 128 - 512 MB SLC: 1 - 64 GB
  • PCMCIA / IDE interface
  • MLC / pSLC / SLC flash technology
  • 1 year or period determined individually

Key features

MLC / pSLC / SLC
Static and Dynamic Wear Leveling
Bad Block Management
Power Sleep Mode
Capacities

MLC: 4, 8, 16, 32, 64, 128 GB
pSLC: 4, 8, 16, 32, 64 GB
SLC: 128, 256, 512 MB
SLC: 1, 2, 4, 8, 16, 32, 64 GB

Interface

PCMCIA / IDE

Program/erase cycles

MLC 3 000
pSLC 20 000
SLC 60 000

Speed of operation

MLC
read: up to 100 MB/s
write: up to 80 MB/s
pSLC
read: up to 110 MB/s
write: up to 100 MB/s
SLC
read: up to 80 MB/s
write: up to 80 MB/s

Operating temperature

Commercial/Silver: 0 - 70°C
Gold: -25 - 85°C
Diamond: -40 - 85°C

Storage temperature

-40 - 85°C

Max. power consumption

MLC / pSLC: <945 mW
SLC: <710 mW

MTBF

>1 000 000 hours

Dimensions

42.8 x 36.4 x 3.3 mm

Tests for environmental resistance

MLC / pSLC / SLC
High/Low temperature
High Humidity (55.95% RH)
Temperature Cycle (30 min. 20 cycles)
Shock (1500G, Half Sin Pulse)
Vibration (80 Hz - 2000 Hz/20 G in 3 Axis)
Free Fall (1.1m)
Torque (1.3 N/m, 30 sec. 5 times)
Bending (>50 N for 1 min. 5 times)
Contact ESD (±4kV contact)

Part Number (P/N) decoder for industrial memory cards

SDC4GGMGR
TypeCapacityTemperature rangeFlash typePrefix
SDC: SD card
SDU: microSD card
CF: Compact Flash
CFA: CFast
PCBA: USB Flash Drive
128M: 128 MB
256M: 256 MB
512M: 512 MB
1G: 1 GB
2G: 2 GB
4G: 4 GB
8G: 8 GB
16G: 16 GB
32G: 32 GB
64G: 64 GB
128G: 128 GB
S: Silver (0 - 70°C)
G: Gold (-25 - 85°C)
D: Diamond (-40 - 85°C)
M: MLC
P: pSLC
S: SLC
GR: GOODRAM
Form factor Size File
Datasheet ZIP 1 MB
